Assignment: Design, make, and document a press-fit construction kit.

For this assignment, I chose to use CorelDraw as my 2D C.A.D program. After opening a new document, I used the rectangle drawing tool and created my pieces for the sides and tabs. I made the length of my tabs slightly greater than the width of my cardboard material.

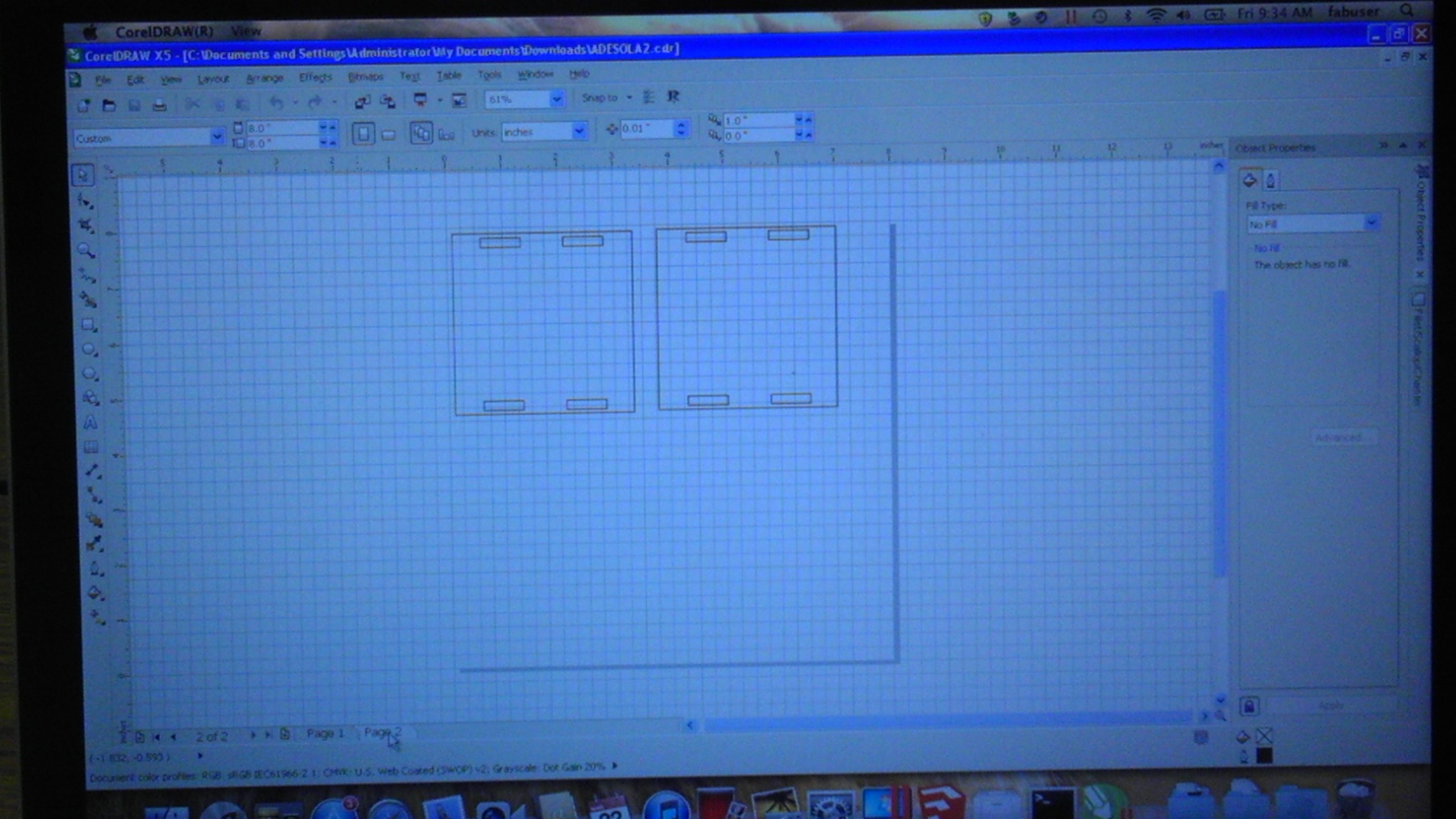

The above image displays rectangles of different sizes being put together to create the body, slots and tabs.

The above images are of rectangled slots, body, tabs and sides after being welded together as a part of the press-fit kit.

Above is the image of the finished product of my press-fit box.
